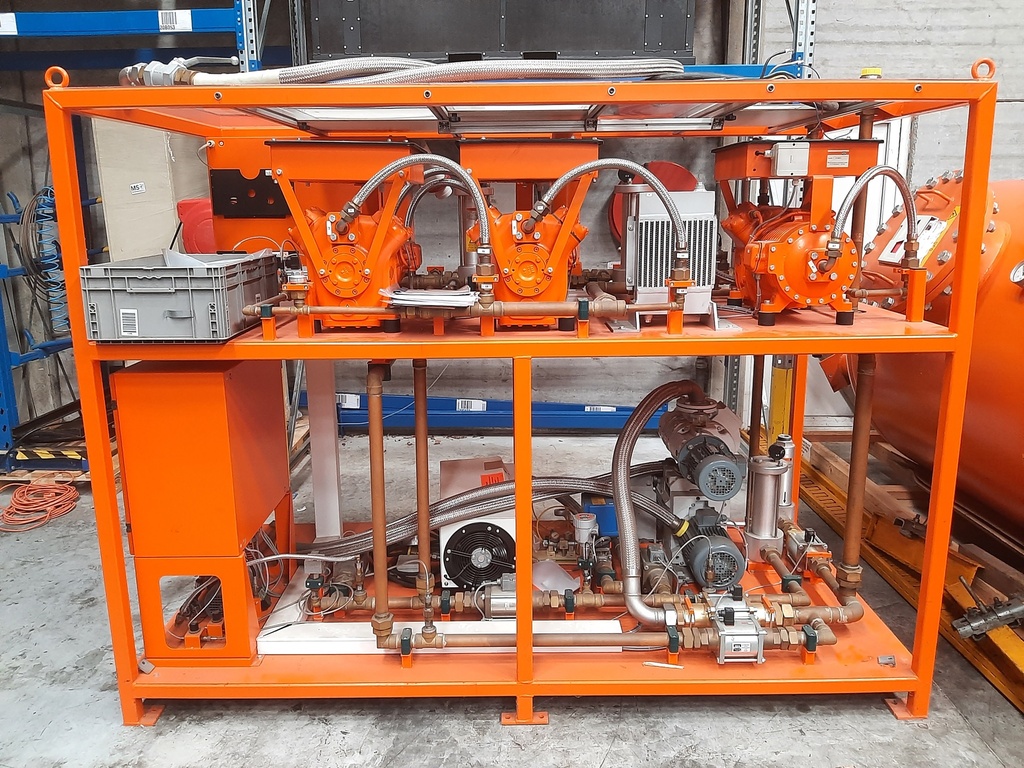

SF6 Dilo transfer group
Gaz handling system Z309R26/1024312
S/N:AAA14138200
Year:2012
Power: 400V+N+PE. 14kW
PLC SF6 transfer group
Like new - Dated 2012
3 pcs. TM2.5 compressors (15m³/h, max. 16 bar each) with space for one additional compressor
screw pump (100m³/h, < 1mbar)
D40B vacuum pump with WAU251 roots pump (provided by the customer)
digital vacuum and pressure indication
operation via touch panel,electric control with automatic process control, dry filter, particle filter, different wrenches
paint: orange RAL 2004
Operating voltage: 380-420V/ 50Hz 3-phase current
